NEW QUESTION # 150

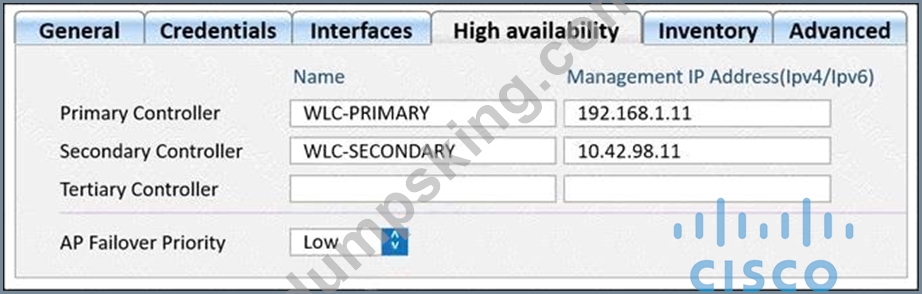

Refer to the exhibit.
An engineer determined that during a recent controller failure, some APs did not failover to their secondary controller based on the network design, which has sufficient licenses for all APs. The controllers are not in a mobility group but have A records for their hostnames in DNS. Which setting needs to be addressed?
- A. The controllers must be in the same mobility group.
- B. DNS hostnames are required to be FQDN.
- C. The secondary controller IP address is incorrect.
- D. The AP failover priority was not set high enough.
Answer: C
Explanation:
In the scenario described, where some APs did not failover to their secondary controller despite having sufficient licenses, the issue likely lies with the configuration of the APs to recognize the secondary controller.
Since the controllers are not in a mobility group but have A records for their hostnames in DNS, this suggests that they rely on DNS for AP discovery and failover. If APs are not failing over as expected, it could be due to an incorrect IP address configured for the secondary controller on the AP or within DNS. The exhibit shows that the "Secondary Controller" field has an IP address of "10.42.89.11", which should be verified against DNS records and actual controller settings to ensure accuracy. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide Premium Edition and Practice)
NEW QUESTION # 151
Why is 802.11a connectivity reduced in an X-ray room?
- A. X-rays impact the 802.11a UNll-2 channels Vial cause access points to dynamically change channels.
- B. X-rays within these rooms cause multipath issues.
- C. X-rays create significant non-Wi-Fi interference on the 802.11a band
- D. X-ray rooms exhibit increased signal attenuation
Answer: D
NEW QUESTION # 152
Guest anchoring is configured for a newly created SSID for your company. It has been noticed that the mobility tunnels are not up, and that MPING fails from your foreign WLC to the anchor WLC. What is the reason that it is failing?
- A. A rule is needed at the firewall to allow UDP port 97 for communication to work.
- B. A rule is needed at the firewall to allow TCP port 97 for communication to work.
- C. A rule is needed at the firewall to allow UDP port 16666 for communication to work.
- D. A rule is needed at the firewall to allow TCP port 16666 for communication to work.
Answer: C
Explanation:
Section: Mobility
NEW QUESTION # 153
Which non-Wi-Fi interferer can be identified by Metageek Chanalyzer?
- A. PDAs
- B. jammers
- C. printers
- D. smartphones
Answer: B
Explanation:
Section: Wireless Site Survey
Explanation/Reference:
NEW QUESTION # 154
Multiple WLCs are implemented in a high-availability configuration in a mobility group. APs are deployed with only a primary controller assigned. By default, which mobility group member controller do the orphaned APs join in the event of a failed controller?
- A. controller with the lowest percent of associated APs per license capacity
- B. controller with the least number of associated APs
- C. controller with the least CPU utilization over the last reporting period
- D. controller with the most available AP free license capacity
Answer: A
Explanation:
In a high-availability configuration, orphaned APs will join the controller with the lowest percentage of associated Access Points (APs) per license capacity by default. This ensures a balanced distribution of APs across the controllers in the mobility group, optimizing resource utilization and network performance. Reference: Designing Cisco Enterprise Wireless Networks (ENWLSD 300-425)
NEW QUESTION # 155
Which feature is supported with the PPPoE client?
- A. DMVPN
- B. QoS on the dialer interface
- C. MLPPP on the interface
- D. Dial-on-demand
Answer: D
Explanation:
Explanation/Reference:
NEW QUESTION # 156

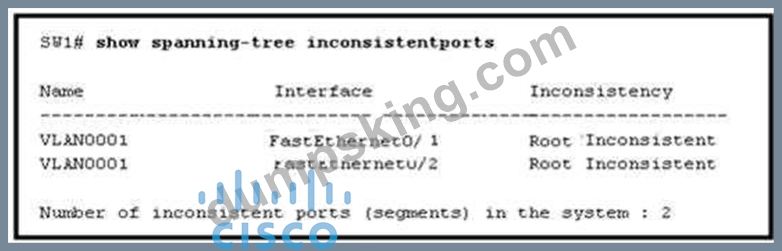

Refer to the exhibit. On the basis of the output of the show spanning- tree inconsistentports command, which statement about interfaces FastEthernet 0/1 and FastEthernet 0/2 is true?
- A. They have been configured with the spanning-tree bpdufilter disable command.
- B. They have been configured with the spanning-tree guard loop command.
- C. They have been configured with the spanning-tree bpduguard disable command.
- D. They have been configured with the spanning-tree guard root command.
- E. They have been configured with the spanning-tree bpdufilter enable command.
- F. They have been configured with the spanning-tree bpduguard enable command.
Answer: D
NEW QUESTION # 157

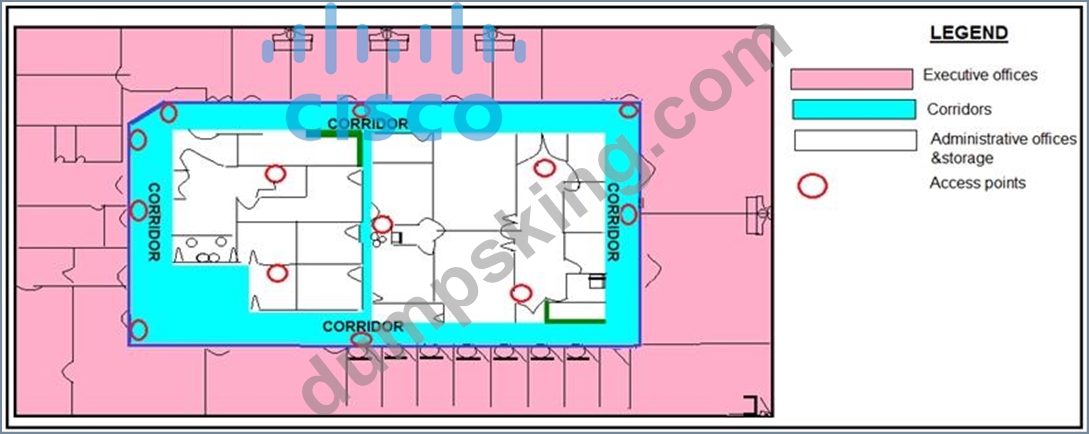

Refer to the exhibit.
What is the main reason why the Wi-Fi design engineer took a different approach than installing the APs in the offices, even though that installation provides better coverage?
- A. power supply considerations
- B. antenna gain
- C. aesthetics
- D. transmit power considerations
Answer: D
Explanation:
The decision to avoid installing APs directly in offices is likely due to transmit power considerations. Placing APs within offices could lead to excessive coverage for small areas, causing interference with other APs and reducing overall network performance. By placing them in common areas like corridors, engineers can ensure more uniform coverage across larger spaces while managing transmit power more effectively for optimal performance.
Reference:
CCNP Enterprise Wireless Design ENWLSD 300-425 Official Cert Guide
https://www.cisco.com/en/US/docs/solutions/Enterprise/Mobility/emob30dg/RFDesign.html#wp1000551
NEW QUESTION # 158
An AP is receiving 802.11 packets on its 802.11a radio with an RSSI value of -77 dBm. The current AP is part of an AP group that has been assigned an RF profile with RX-SOP set to Medium for 802.11a. Which action does the AP take with the packets?
- A. All frames are classified as non-Wi-Fi frames and are not decoded by the 5 GHz radio.
- B. All frames are classified as non-Wi-Fi frames and are not decoded by the 2.4 GHz radio.
- C. Frames are decoded by the 5 GHz radio.
- D. Frames are decoded by the 2.4 GHz radio.
Answer: C
Explanation:
An RSSI value of -77 dBm is within the range that a 5 GHz radio can receive and decode, provided it's not below the RX-SOP threshold set for the RF profile. Since the RF profile is set to Medium for 802.11a, which operates in the 5 GHz band, the AP's 5 GHz radio will decode the frames.
NEW QUESTION # 159
What causes the most signal attenuation, based on the wireless design tools?
- A. glass wall
- B. cinder block wall
- C. metal door
- D. office window
Answer: C
Explanation:
NEW QUESTION # 160
An engineer in a branch office that does not have a wired backhaul must ensure that local clients can be switched locally and authenticated centrally. In which mode must the AP be configured?
- A. MAP
- B. RAP
- C. Cisco FlexConnect
- D. Flex+Bridge
Answer: C
Explanation:
Cisco FlexConnect mode is designed for branch offices that lack a wired backhaul. It allows APs to switch client data traffic locally while still performing client authentication centrally. This mode provides the flexibility needed for branch deployments, ensuring that client traffic is handled efficiently even if the WAN link to the central site is down. References: Cisco FlexConnect technical documentation and Designing Cisco Enterprise Wireless Networks (ENWLSD) training.
NEW QUESTION # 161
A network engineer is configuring high availability on an access point. What is the maximum number of controllers that can be configured?
- A. 0
- B. 1
- C. 2
- D. 3
Answer: A
Explanation:
So max 2 will be supported on an AP.
NEW QUESTION # 162
An engineer is designing a network deployment for a technology company. The company has four buildings with access points that must provide seamless wireless coverage and client roaming. The customer data center must have two WLCs and the core switches for the network. Which type of wireless architecture must be used?
- A. distributed
- B. cloud
- C. centralized
- D. autonomous
Answer: C
NEW QUESTION # 163
An engineer must decide the cell overlap for a wireless voice deployment. Which Cisco measurement recommendation should be considered?
- A. The measurement should be done on the 2.4-GHz band.
- B. The edge of the cell should be -67 dBm.
- C. The edge of the cell should be below 35 RSSI.
- D. One AP should be deployed per 3000 square feet.
Answer: B
Explanation:
NEW QUESTION # 164
A university lecture hall has a Cisco wireless high-density network with this configuration:
- 5 GHz only
- 20-MHz channels
- UNII-1, UNII-2, and UNII2-E channels
- TPC minimum = 8
- TPC maximum = 14
The lecture hall is 200 feet by 100 feet and has 16 Cisco APs that use directional antennas.
Which feature must be included in the design to mitigate and reduce high-channel utilization from rogue APs?
- A. 802.11w
- B. DFS detection
- C. RxSOP
- D. band select
Answer: C
Explanation:
RxSOP allows the APs to ignore weaker signals, effectively reducing the impact of neighboring APs and potential rogue APs on the network. By adjusting RxSOP, APs can be made less sensitive to weak signals, which helps in reducing interference and improving overall network performance.
NEW QUESTION # 165
......
